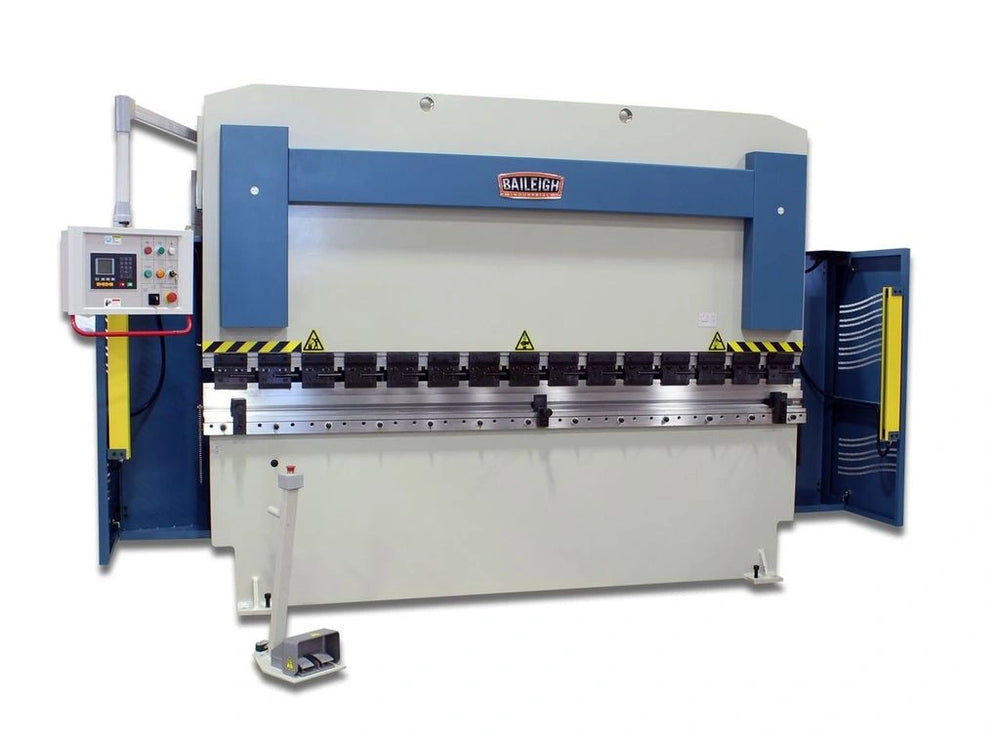

Need to bend 8-foot lengths of .25” mild steel? This programmable press brake maintains accuracy with a steel frame and hydraulic parts from Nachi® and Vickers/Eaton®.

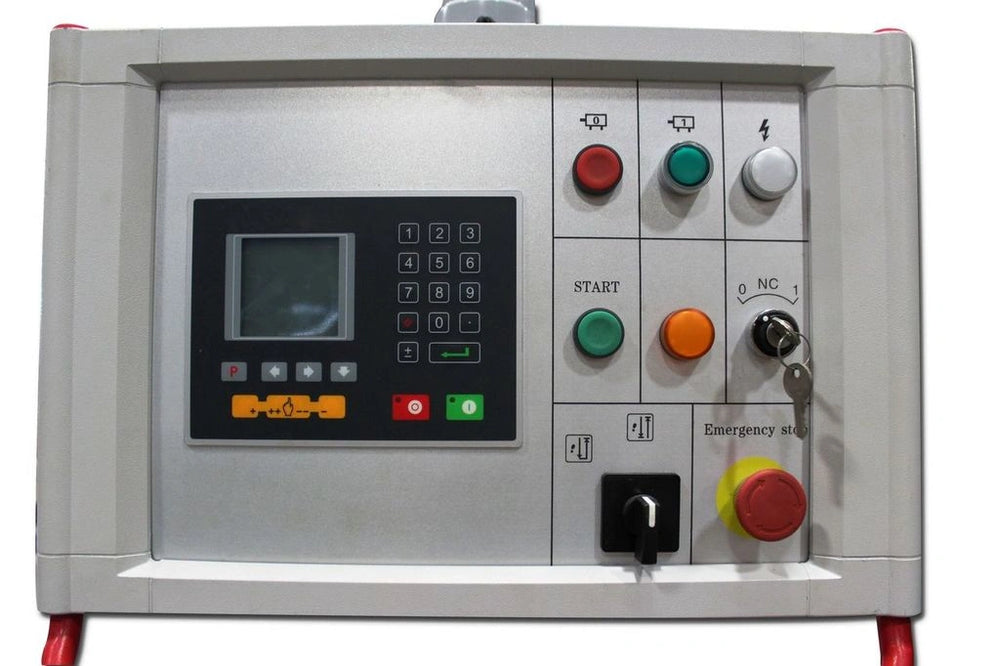

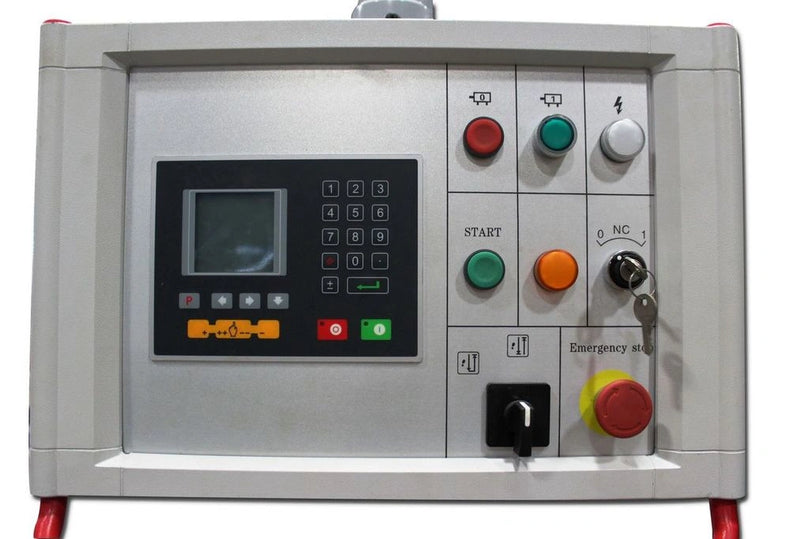

Precise, User-Friendly Control System
*Runs in single-bend mode or programmable mode.
*Comes standard with 2 axes of control: stroke and back gauge distance.
*Controller is so simple that you could train someone to use it in 5 minutes.
*Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
*Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.

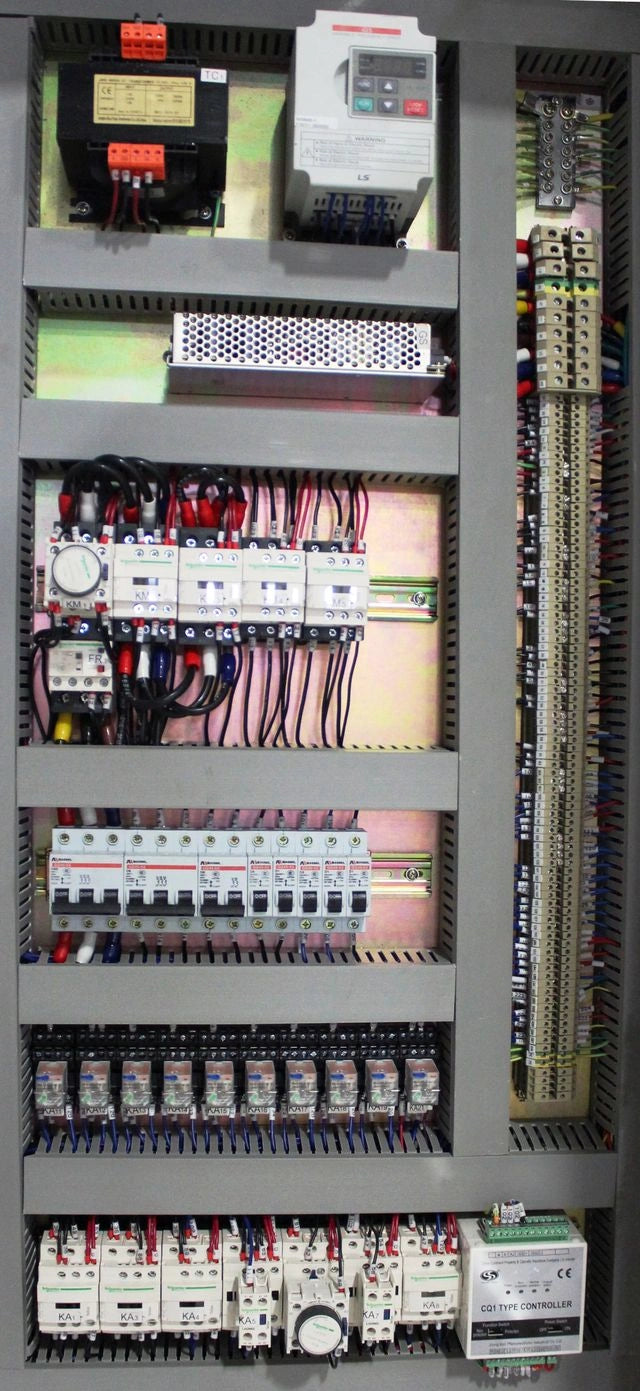

*Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.
*Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
*You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
*Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
*Speed option lets you reduce cycle time and make your shop more efficient.
*Chain drive back gauge system uses tried-and-true technology that you can maintain easily.
*The 23.62" back gauge can advance or retract according to programmed instructions.

Steel Plate Construction and Included Tooling
*Fully welded all-steel construction helps prevent deformation and minimize flex during the bending process.
*Weighs a robust 21,280 lbs. for massive structural strength that ensures accurate results.
*Includes support arms around 2 feet in length.

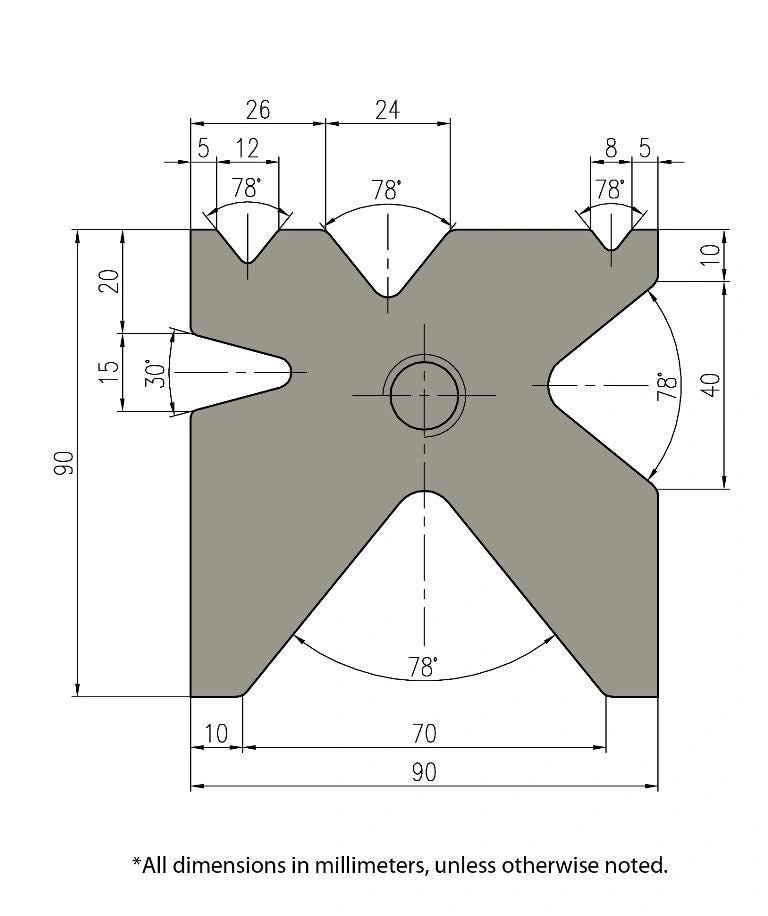

*Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style).
*Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!
*Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
*CNKELI® safety light curtains prevent the machine from bending when someone is too close.
*Light curtains will swing open and get out of the way when you’re doing a tool change.
