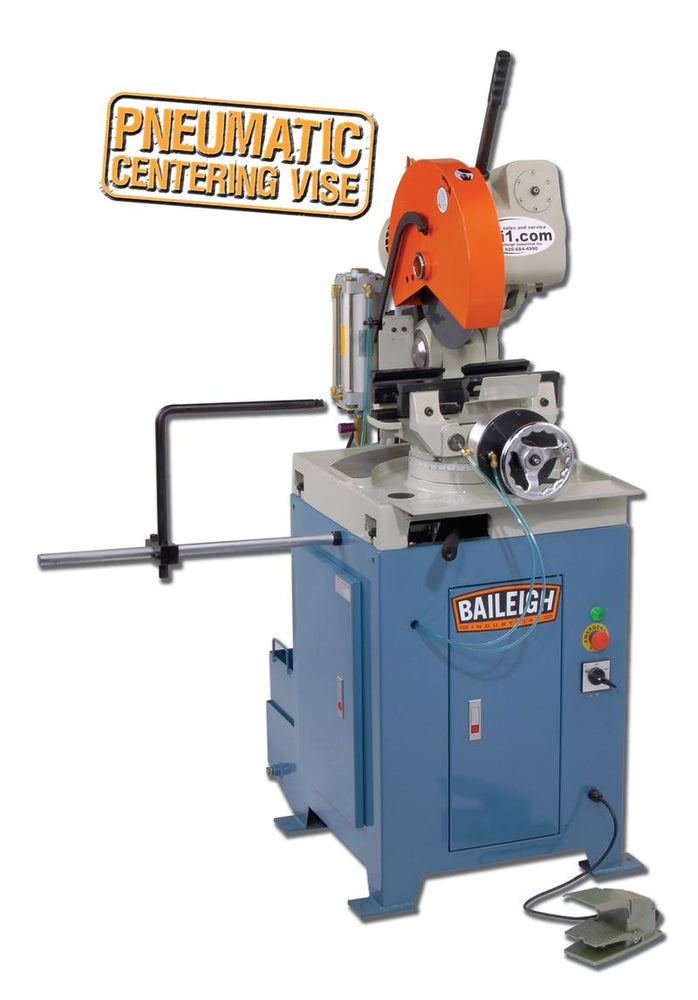

This semi-automatic cold saw makes pristine cuts on a production scale. Its pneumatic vise and automatic return save you time. A flood coolant system maintains high quality.


*Accepts a massive 14” blade.
*4.33” round tube capacity at 90°.
*You can switch between 2 speeds, 26 and 52 rpm, depending on your material.
*4 hp motor runs the direct-drive blade and requires 220-volt 3-phase power.
*Miters 45° right and 90° left, which is important if you have any slotting applications.
*Rigid cast iron head minimizes vibrations so that the blade gives you high-quality cuts—and will for many years to come.
*Ground and hardened all-metal gears in blade head ensure tight tolerances throughout the life of the saw.
*Backlash adjustment allows you to tighten the gears when needed and keep the saw accurate.
*Design adds semi-automatic features to our manual CS-350M, which has proven itself one of the best production saws available.
*Semi-automatic system is simple to operate.
*Simply put the material in the vise and push the foot pedal down. The saw handles the rest.
*The blade starts, descends, cuts, and returns on its own. Once the cut is complete the blade will shut off and the head will raise back up.

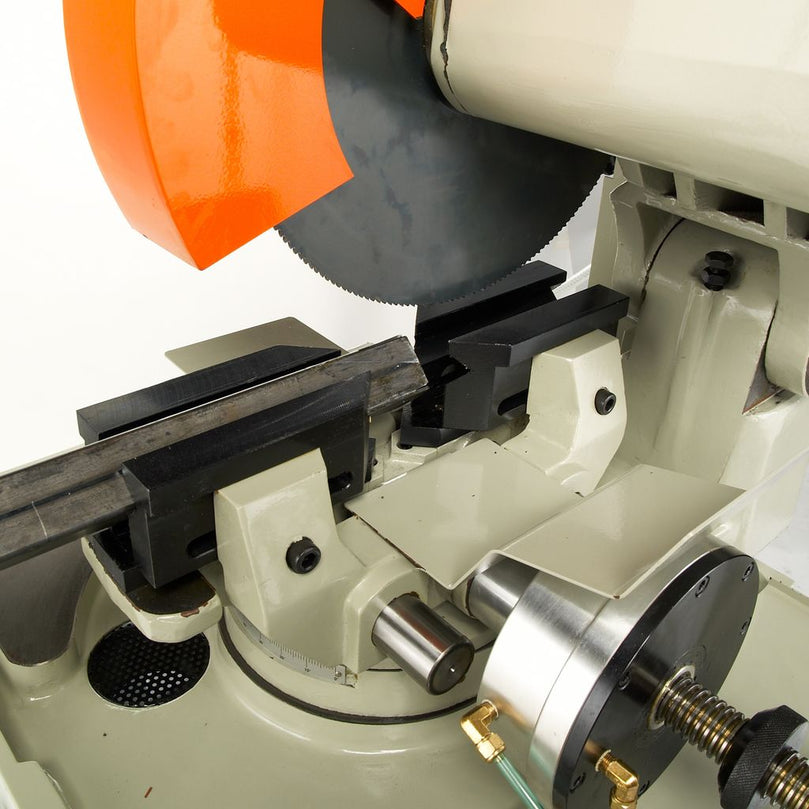

*Air-powered vise, controlled by the foot pedal, clamps the material with jaws on both sides.
*American-style vise is self-centering. It keeps the material in the right position for the blade, so you don’t have to worry about different material diameters.
*Steel stop rod allows you to cut repeatable lengths conveniently.
*Rigid cast iron saw base maintains accuracy and high cut quality by preventing the blade from wobbling.
*Durable folded steel stand puts the machine at a comfortable working height.
*Flood coolant system lubricates the blade and helps it deliver clean, precise cuts, like only a cold saw can.
*Integrated coolant system makes blades longer, so you spend less on replacements. It also prolongs the lifespan of saw itself.
*We stock replacement parts so we can ship them to you quickly.
*This circular cold saw comes covered by a 1-year parts warranty.
*Lifetime technical support by phone means that you can talk to a Baileigh rep with hands-on machine experience whenever you need help.


Recommended for: Production cutting of thin-, medium-, or thick-walled pipe, as well as tubing, extrusions, or solid bar stock.

Questions? Not sure which cold saw is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.
